The appearance and functions of Skytone Magic series consoles
are comparable to the well-known Yamaha MG series !
It has the fashion appeal of the well-known Yamaha
without infringing;
It has also reached a price that is affordable/favorable,
meeting the public's demand for cost-effectiveness.
This series mixers have Magic12 and Magic16 for your option,
suitable for small and medium-sized performances, meetings,
weddings, multi functional hall, conference hall,
product marketing and other audio usage occasions.

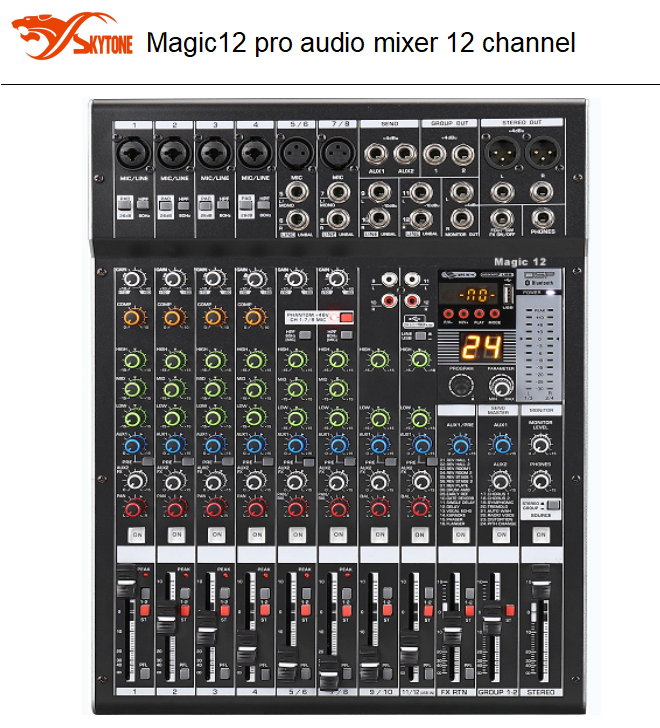

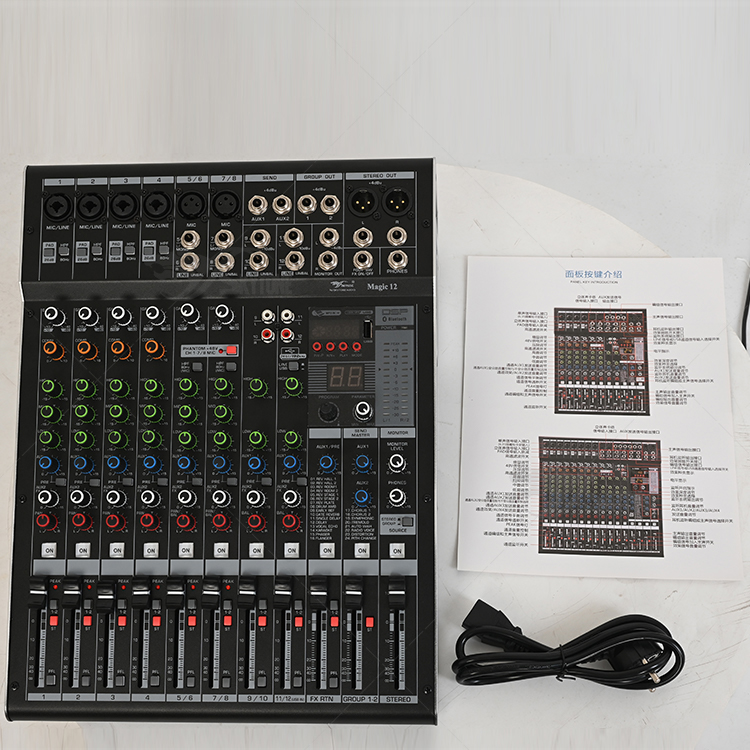

Functional features of MAGIC12:
1. Professional Bluetooth style mixing console, equipped with low noise discrete microphone preamplifier and+48V phantom power supply, with powerful and complete functions and pleasant sound quality.
2. Provide 6 Mic input interfaces compatible with 6 line input interfaces, with 48V phantom power supply.
3. Provide 4 sets of stereo linear inputs that can be connected to stereo devices.
4. Each mono input channel is equipped with 3 EQ segments (stereo two segments), and the branch channels are equipped with voltage limit control and peak indicator lights.
5. Provide 4 sets of stereo main output, 2 sets of auxiliary output, 2 sets of group output, 1 set of stereo monitoring output, and 1 headphone monitoring output.
6. Built in 24 bit DSP renderer.
7. Bluetooth, MP3 player, large screen player, USB with sound card function, USB computer recording, USB flash drive recording directly

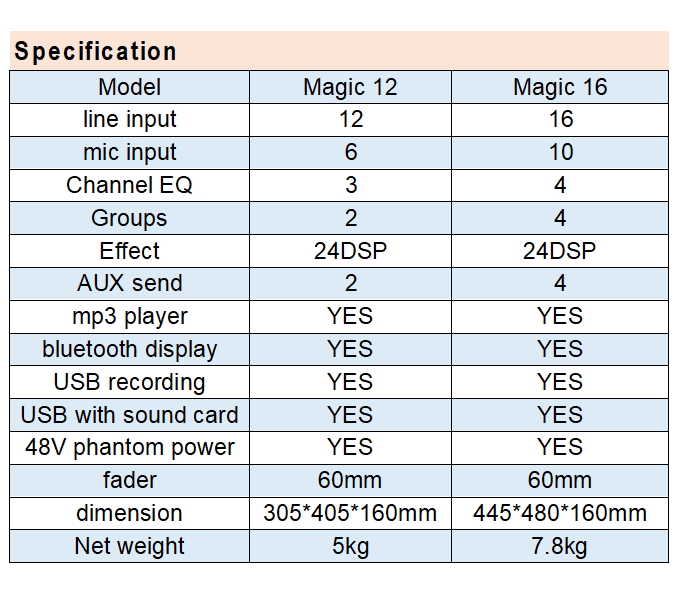

Technical parameters:
1. Microphone input: 6 channels (6 XLR ports)
2. Line input: 6-way single plug mono/stereo automatic switching hybrid interface
3. Stereo input: 4 sets
4. The branch channel is equipped with voltage limit control
5. Output channels: 4 sets of stereo main outputs, 2 sets of auxiliary outputs, 2 sets of group outputs, 1 set of stereo monitoring outputs, and 1 headphone monitoring output
6. Effects: 24 bit DSP effects (including vocal, small house, hall, echo, echo+echo, plate, vocal board, chorus GTR, rotary GTR, vibrato GTR types)
7. Phantom power supply:+48V with switch
8. Frequency response: 20Hz-20kHz, ± 3dB
9. Distortion:<0.003% (A-weighted)
10. Microphone equalization input noise: -119dB (A-weighted)
11. Common mode rejection ratio: 60dB
12. Single channel input gain: MIC: 0 to 48dB, LINE: -33 to+15dB
13. Stereo channel input gain: LINE: -8 to+6dB
14. Main mix crosstalk: -87dBu (A-weighted)
15. Channel crosstalk: -85dBu (A-weighted)
16. Maximum output level:+20dBu
17. MIC input high pass filtering: 75Hz, 18dB/oct
18. Single channel equalization: High frequency: ± 15dB@12KHz ； Mid frequency: ± 12dB@2.5KHz ； Low frequency: ± 15dB@80Hz
19. Power supply: Built in switch power adapter 110-220V, 30W
20. Power consumption: ≤ 18W
21. Size (L × W × H): 305 * 405 * 160mm
22. Weight: 5.1kg

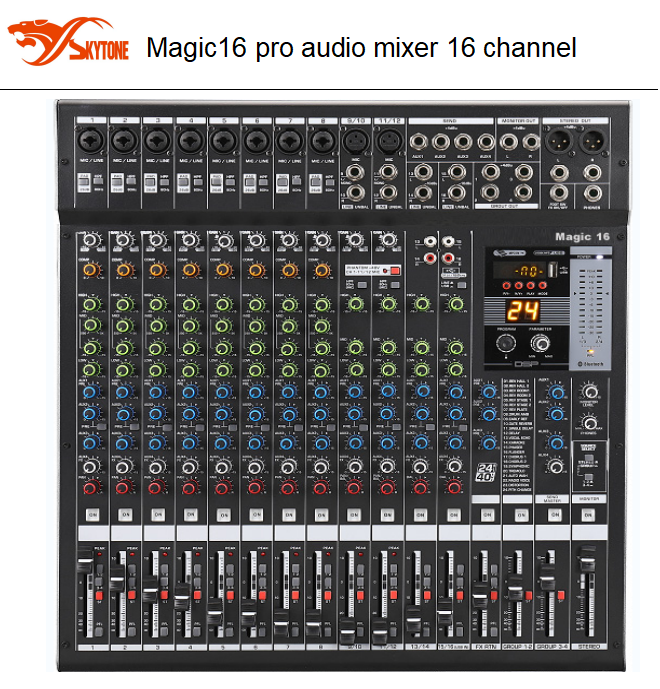

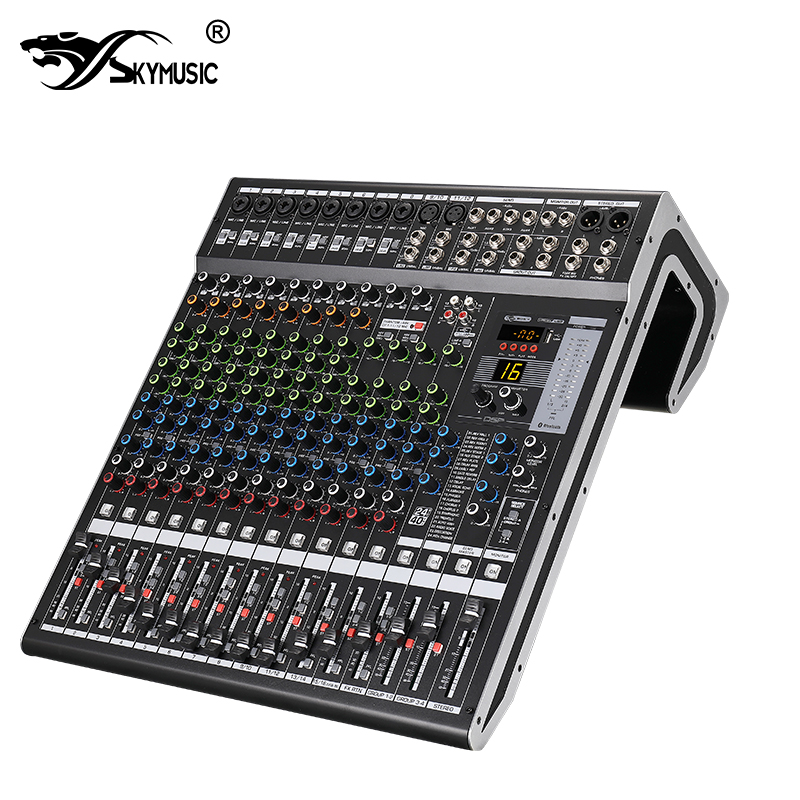

Functional features of MAGIC16:
1. Professional Bluetooth style mixing console, equipped with low noise discrete microphone preamplifier and+48V phantom power supply, with powerful and complete functions and pleasant sound quality.
2. Provide 10 Mic input interfaces compatible with 10 line input interfaces, with 48V phantom power supply.
3. Provide 4 sets of stereo inputs that can be connected to stereo devices.
4. Each mono input channel is equipped with 4 EQ segments (stereo three segments), and the branch channels are equipped with voltage limit control and peak indicator lights.
5. Provide 4 sets of stereo main outputs, 3 sets of auxiliary outputs, 4 sets of outputs, 1 set of stereo monitoring outputs, and 1 headphone monitoring output.
6. Built in 24 bit DSP renderer.
7. Bluetooth, MP3 player, large screen player, USB with sound card function, USB computer recording, USB flash drive recording directly
Technical parameters:
1. Microphone input: 10 channels (10 XLR ports)
2. Line input: 10 channel single plug mono/stereo automatic switching hybrid interface
3. Stereo input: 4 sets
4. The branch channel is equipped with voltage limit control
5. Output channels: 4 sets of stereo main outputs, 3 sets of auxiliary outputs, 4 sets of outputs, 1 set of stereo monitoring outputs, and 1 headphone monitoring output
6. Effects: 24 bit DSP effects (including vocal, small house, hall, echo, echo+echo, plate, vocal board, chorus GTR, rotary GTR, vibrato GTR types)
7. Phantom power supply:+48V with switch
8. Frequency response: 20Hz-20kHz, ± 3dB
9. Distortion:<0.003% (A-weighted)
10. Microphone equalization input noise: -119dB (A-weighted)
11. Common mode rejection ratio: 60dB
12. Single channel input gain: MIC: 0 to 48dB, LINE: -33 to+15dB
13. Stereo channel input gain: LINE: -8 to+6dB
14. Main mix crosstalk: -87dBu (A-weighted)
15. Channel crosstalk: -85dBu (A-weighted)
16. Maximum output level:+20dBu
17. MIC input high pass filtering: 75Hz, 18dB/oct
18. Single channel equalization: High frequency: ± 15dB@12KHz ； Mid frequency: ± 12dB@2.5KHz ； Low frequency: ± 15dB@80Hz
19. Power supply: Built in switch power adapter 110-220V, 30W
20. Power consumption: ≤ 23W
21. Size (L × W × H): 445 * 480 * 160mm
22. Weight: 7.8kg
